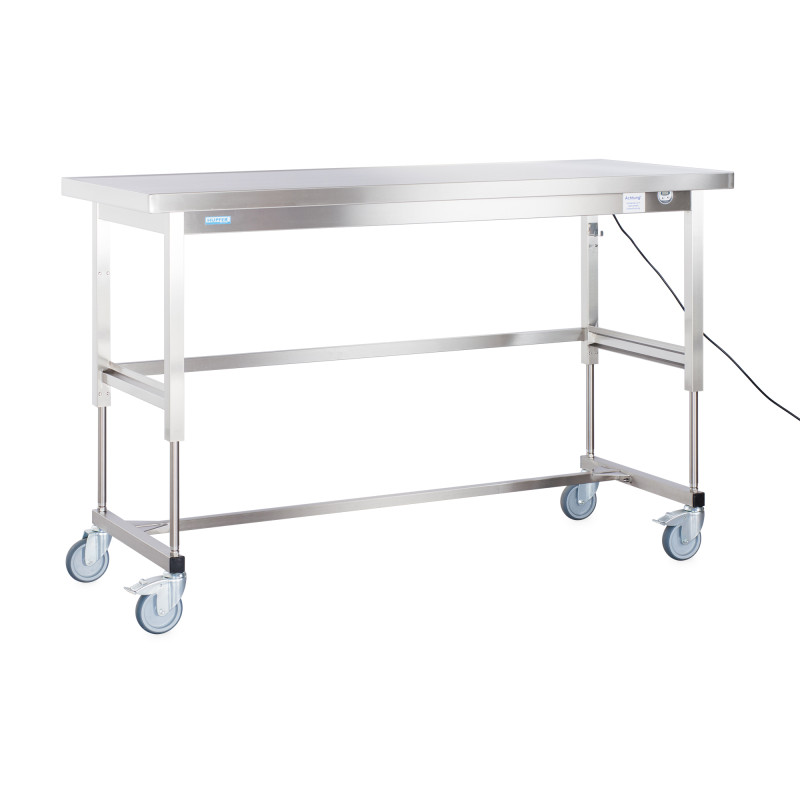

Work table 1600×700×850-1150 mm
AT-EH 1600/700/850-1150-F
Product code:
0163298
Key facts
Thick worktop: 1.5 mm
Stainless steel
Product information
Robust design made of square tubes, worktop folded on all sides. Underside of tabletop reinforced by profiles and fitted with a stainless steel pan, housing and protecting the hydraulic system for height adjustment. Lift cylinders with adjustment feet ensure compensation of floor unevennesses. Hydraulic, infinitely variable height adjustment system integrated into feet, for adaptation to different user body heights. Chassis with four feet for worktops up to a length of 87'' (2200 mm), with six feet for greater lengths, mobile on swivel casters with back-hole fastening, two of which with total lock. Struts in base on three sides for enhanced rigidity and optimum attaching of shelves.
Technical information
Payload: | 150 kg |
Capacity: | 240 W |
Nominal current: | 1,0 A |
Protection class: | Class I |
Frequency: | 50 Hz |
Weight: | 59 kg |
Width: | 1600 mm |
Depth: | 700 mm |
Height: | 850 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date06.07.2025 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date06.07.2025 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
0163298 DWG drawing
TypeDWG drawingsFile typedwg (0.66 MB)Creation Date15 Oct 2019Protected download for dealers and planners: Please log in and get in touch with our contact partners with regard to activation if necessary.
Spare parts
LR Edelst Rl3/125 mF
P/N 0191316407
