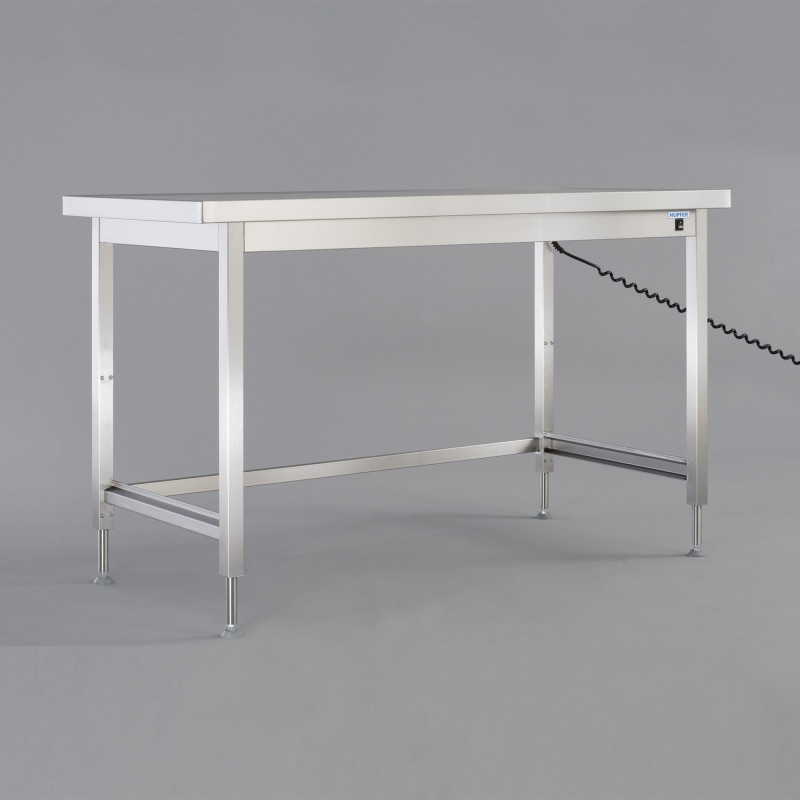

Similar to illustration
Work table 2000×700×850-1150 mm
AT-EH 2000/700/850-1150
Product code:
0163226
Work table made of high-quality stainless steel in hygienic design, with hydraulic height adjustment system for ergonomic adaptation to different body sizes.
Key facts
Thick worktop: 1.5 mm
Stainless steel
Robust design made of square tubes, worktop folded on all sides. Underside of tabletop... more
Product information
Robust design made of square tubes, worktop folded on all sides. Underside of tabletop reinforced by profiles and fitted with a stainless steel pan, housing and protecting the hydraulic system for height adjustment. Lift cylinders with adjustment feet ensure compensation of floor unevennesses. Hydraulic, infinitely variable height adjustment system integrated into feet, for adaptation to different user body heights. Four feet with worktops up to a length of 87'' (2200 mm), six feet for greater lengths. Struts in base on three sides for enhanced rigidity and optimum attaching of shelves.
Technical information
| Payload: | 230 kg |
| Capacity: | 240 W |
| Nominal current: | 1,0 A |
| Protection class: | Class I |
| Frequency: | 50 Hz |
| Weight: | 60 kg |
| Width: | 2000 mm |
| Depth: | 700 mm |
| Height: | 850 mm |
Downloads
-
Spec sheet
TypeProduct dataFile typepdf (ca. 1.5 MB)Creation Date06.07.2025 -
Tender specification
TypeProduct dataFile typeText for clipboardCreation Date06.07.2025 -
Care instructions for stainless steel
TypeOperating and assembly instructionsFile typepdf (0.54 MB)Creation Date30 Nov 2020 -
0163226 DWG drawing
TypeDWG drawingsFile typedwg (0.20 MB)Creation Date15 Oct 2019
